DENALI DX Xtreme Sport Dual Intensity LED Lighting Kit



DENALI DX Xtreme Sport Dual Intensity LED Lighting Kit (TT-DX)

The large 10° optic in the DX maximizes the distance you can see down the road by concentrating a spot beam pattern at the center of the road. The DX is ideal for night riding in on/off road conditions where maximum beam distance is desired. Consuming only 10 watts of power per lamp, the Denali DX lights throw a blazing beam of light 695 feet down the road in front of you. That’s over 4 times further than your typical motorcycle high beam.


  • * Pod Size: 3” square x 3.75” long
  • * LED: (1x) 10 Watt CREE XM-L2
  • * Beam Distance: 695’
  • * Input Voltage: 12v DC
  • * Power Draw: 1.5 amps per pair
  • * Intensity: Dual
  • * Beam Angle: 10°
  • * Waterproof: IP-68 (full immersion at 6.6ft for 60 minutes)
  • * Mount: Universal M8

Dual Intensity Technology

The Denali DX lights are equipped with a dual intensity LED and harness to create the ideal lighting solution for on and off road riders who want an uncompromised beam of light illuminating the road in front of them. These lights are so bright, we developed dual intensity technology so you can use your existing hi/low beam switch to select half intensity brightness when passing oncoming. The lights can also be wired independent of your high/low beam switch to run at full intensity all the time. It’s up to you!

All Denali LED lights are housed in a rugged waterproof aluminum housing (submersible up to 3 meters underwater). Our LED’s boasts an average life span of 50,000 hours; that’s 6 years without ever being shut off! Yes, we went overboard. It’s what we do.

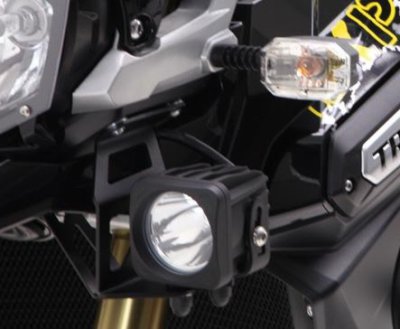

Making our light kits easy to mount and install to your motorcycle is a top priority for us. Every light kit includes a universal M8 mounting bracket and detailed wiring diagrams that are simple and easy to understand. An included waterproof switch allows the lights to be shut off at any time. Bike specific light mounts are also available for many popular bike models.

What's in the Box:

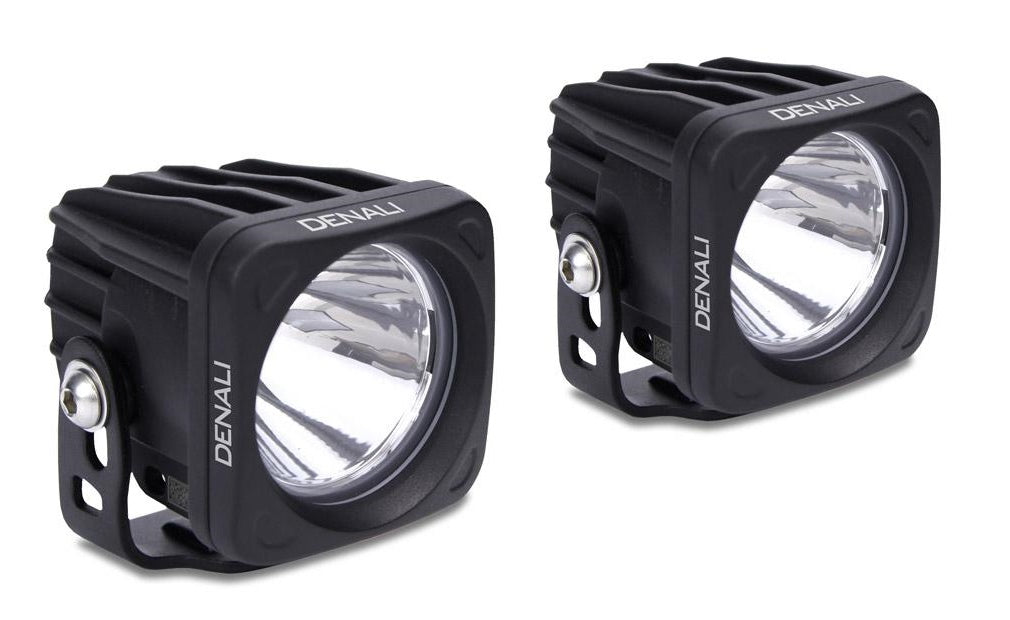

  • * 2x DX LED light pods with 10° beam pattern
  • * Wiring Harness with Relay and Lighted Switch
  • * 2x M8 (8mm) mounting brackets
  • * Installation instructions
  • * Allen wrench


Dual Intensity functionality is currently not available on the following bikes. This is because a standard 12 Volt High Beam Trigger Wire not available.: -R1200GSLC with LED Head Light -Yamaha XT1200Z Super Tenere

Denali will be releasing a 3-Position Switch to allow for manual switching of the high-beam.

Note: Denali LED lights are for D/C electrical systems only.
